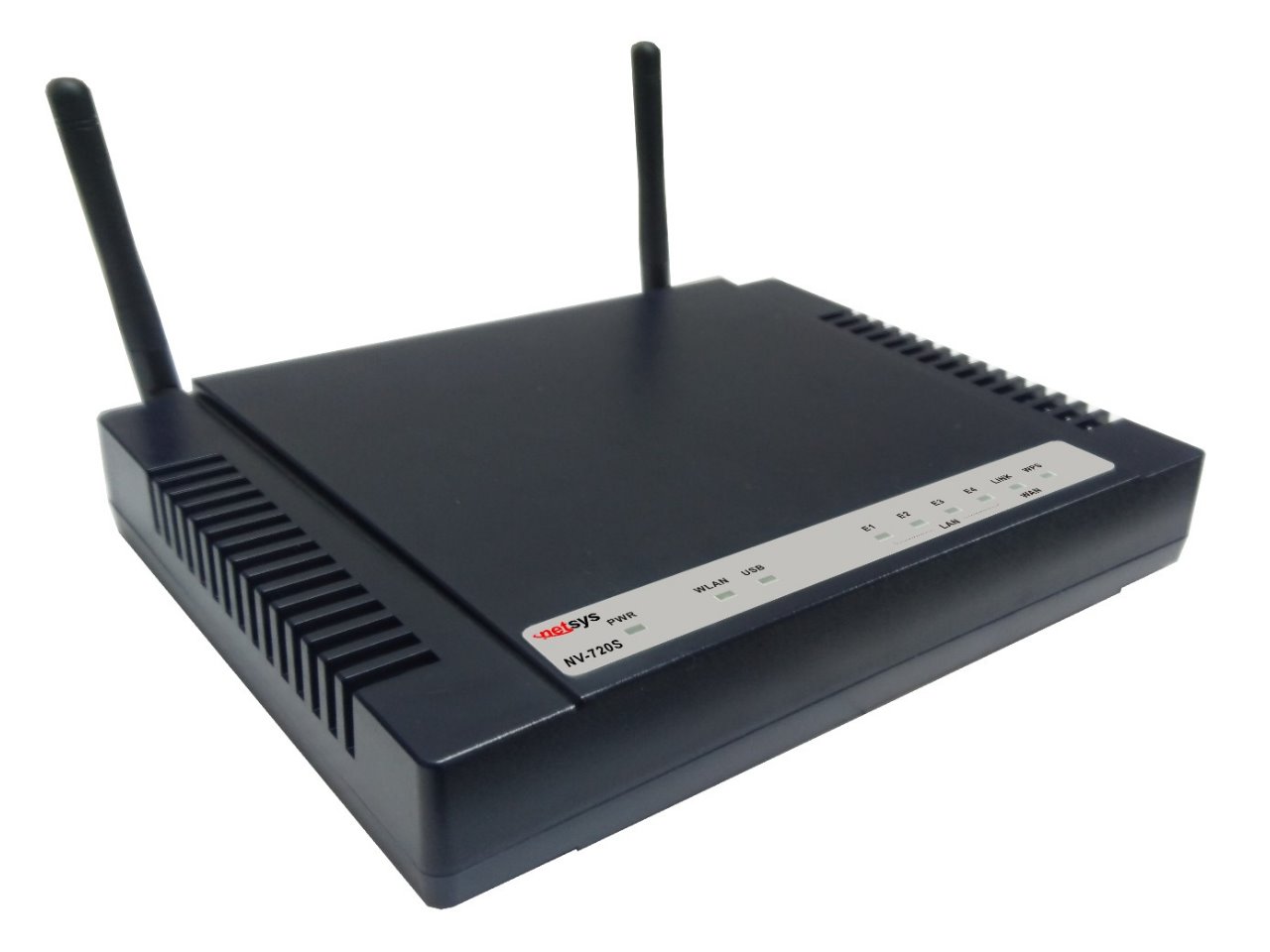

NV-720S
ADSL2+/VDSL2 Wi-Fi 11n Modem Router
| Ordering Information | ||
| NV-720S | ADSL2+/VDSL2 Wi-Fi 11n Modem Router | |
- OVERVIEW
- FEATURES
- SPECIFICATIONS
- APPLICATIONS
- DOWNLOAD
Product OVERVIEW
NV-720S is a VDSL2 802.11b/g/n Wi-Fi router. It is compliant to ITU-T G.993.2 standards and Auto-followingCO side Band plan & Band profile. With built-in 802.11n technology, it can deliver Wi-Fi speeds up to 300Mbps and is perfectly suitable for triple-play applications. NV-720S is designed to meet the ISPs requirements with future proof Vectoring and ADSL2+ compatibility to cover end users in different loop range areas.
- Vectoring Technology friendly Mode support
- Easy Installation
- Enhanced Management
Vectoring is a transmission method that employs the coordination of line signals for reduction of crosstalk levels and improvement of performance. It is based on the concept of noise cancellation, much like noise-cancelling headphones. The ITU-T G.993.5 standard, "Self-FEXT cancellation (vectoring) for use with VDSL2 transceivers" (2010), also known as G.vector, describes vectoring for VDSL2. The scope of Recommendation ITU-T G.993.5 is specifically limited to the self-FEXT (far-end crosstalk) cancellation in the downstream and upstream directions. The far end crosstalk (FEXT) generated by a group of near-end transceivers and interfering with the far-end transceivers of that same group is cancelled. This cancellation takes place between VDSL2 transceivers, not necessarily of the same profile.
The NV-720S may be installed on any level surface (e.g. a table or shelf). NV-720S supports plug-and-play installation and is fully compatible with all kinds of network protocols. Furthermore, user can watch the status of each individual port via the LED indicators.
For efficient management, via Web interface, the NV-720S can be programmed for advanced management functions such as QoS (Quality of Service)/DSCP, IEEE 802.1q Tag VLAN, SNMP v1/v2c, IGMP v3 and enhanced security functions such as Packet filtering, DMZ, Mac Address based filtering, Parental Control, Application based filtering. NV-720S also support wireless security such as WEP, WPA, WPA2, TKIP, AES.
FEATURES
- Adopts ARM Cortex A9 dual-core processor
- Supports G.993.5 Vectoring and ADSL2+
- Supports G.998.4 G.INP
- Supports Dying Gasp
- Supports ATM and PTM transmission mode auto detection ( ADSL backward compatible)
- Supports 8a, 8b, 8c, 8d, 12a, 12b, 17a, 17b, and 30a band profile and auto follow-up on CO side
- Supports 997, 998 band plan
- Supports ATM-TC,ATM and AAL5 (ATM Flow Throughput / OAM Cell Filter and Forwarding / AAL5 SAR:PVC / ATM Traffic Class / ATM PVC Shaping / ATM PVC Scheduling)
- Supports ATM Qos CBR, rt-VBR, nrt-VBR, UBR
- Support 2.4G single band wireless
- Compliant with IEEE 802.11b/g/n wireless standard with 2T2R MIMO(Up to 300 Mbps)
- Supports WPS, WMM, WDS
- Supports WEP,WPA,WPA2
- Supports QoS- IP version, LAN port, MAC, VLAN, 802.1P, IP address, DSCP, Protocol type
- Low power with Advanced Power Management
- Supports uPnP/PPPoE/PPPoATM/IPv4/IPv6/NAT/NAPT
- Supports static routing for IPv4 and IPv6 forwarding
- Supports Firewall functions contains Packet filtering, DMZ, Mac Address based filtering, Parental Control, Application based filtering
- Supports DHCP Server/ DHCP Relay/ DHCP Client/ DHCPv6 Client/ DHCPv6 Server/ DNS/ DNS Proxy or Relay/DNSv6 Proxy or Relay/ NTP Client/HTTP1.1 server
- Supports Multicast IP table/IGMP v3 Proxy and Snooping
- Supports HTTP/HTTPS web management
- Support SSL / SSH security
- Provides surge protection for Line port
- Supports Router & Switch(Bridged) mode selection
- Supports Dual Firmware Image Backup
- Supports configuration backup and restore
- Supports remote management and monitor
- Supports 8 queue MFC/DSCP both type QoS
- Supports SNMP v1 / v2
- Supports TR-069
- Supports IEEE802.1p VLAN Priority and mapping to DSCP
- Supports 802.1q VLAN tagging
- Supports VPN
- Supports Jumbo frame up to 2k bytes(switch mode only)
* Specifications are subject to change without prior notice.
Specifications
| Standard Conformance | ||
| Standard: | IEEE802.3/802.3u/802.11b/802.11g/802.11n standards ITU-T G992.1/G992.3/G992.5/G993.1/G993.2/G993.5/G997.1/G998.4 standards |
|
| Regulatory Compliance: | FCC CE RoHS compliance |
|
| Hardware Specifications | ||
| Physical Interface: | 4 x RJ-45 10/100Mbps auto-negotiation Ethernet port 1 x RJ-11 for VDSL2 line port 2 x 2dBi external Antennas 1 x Reset Button for resetting to factory default 1 x WPS Button 1 x USB2.0 for connecting USB dongle |
|
| LED indication: | 1 x Power LED 4 x Link/Active Status for Ethernet port 1 x Link LED for VDSL2 port 1 x WPS LED 1 x WLAN LED 1 x USB LED |
|
| Wireless Frequency Range: | 2.4GHz Single band | |
| Switch method: | Store and forward | |
| Flow control: | Full duplex: IEEE 802.3x Half duplex: Back pressure |
|
| Typical Power Consumption: | 3.6 W(Full load) | |
| Power Supply: | Input Voltage: 12 VDC/1A (Commercial-grade power adapter) | |
| Operating Temperature: | 0°C~ 50°C (32°F ~ 122°F) Fanless, free air cooling | |
| Storage Temperature: | -20°C ~ 70°C (-4°F ~ 158°F) | |
| Humidity: | 10 to 90% (non-condensing) | |
| Net Weight: | 0.44 kg | |
| Dimensions: | 184 x 177 x 104 mm (7.2" x 6.9 " x 4.1") with 2dBi Antenna | |
* Specifications are subject to change without prior notice.
APPLICATIONS
LAN Distance Extension
The router’s line port supports up to 3km for data service across existing phone wiring. It is easy-to-use and do not requires installation of additional wiring. Every modular phone jack in the home can become a port on the LAN. Networking devices can be installed on a single telephone wire that can be installed within a suitable distance.
DOWNLOAD
| Release Date | File | Version | Download |
|---|---|---|---|
| Feb, 2021 | Datasheet | N/A |  |
| May, 2023 | User's manual | B5 | |
