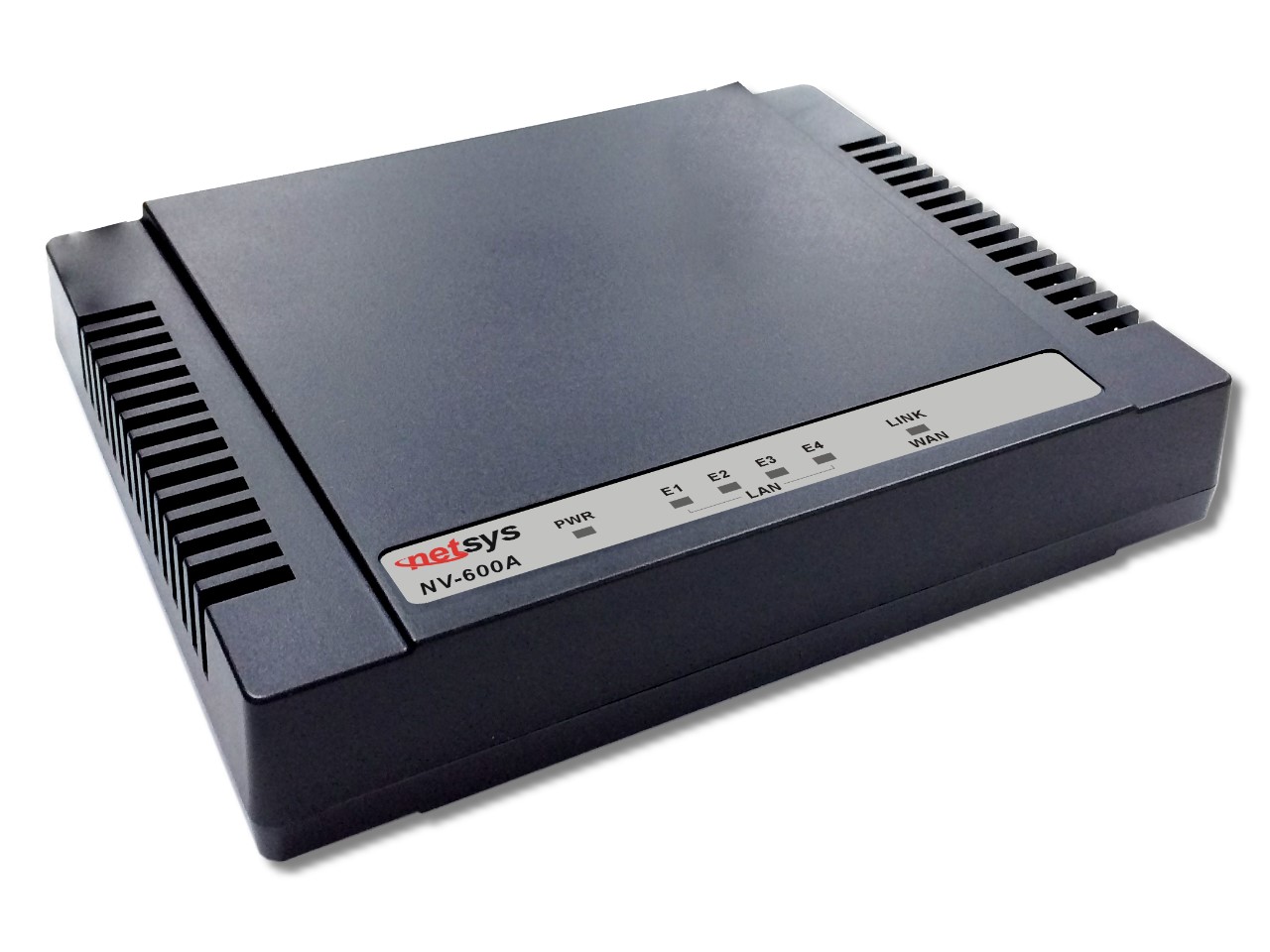

NV-600A is a VDSL2 router of CPE side equipped with four Gigabit LAN ports. It is compliant to ITU-T G.993.2 and G.993.5 standards and supports VDSL2 30a profile that features 100Mbps of symmetric data and it is perfectly suitable for triple-play applications. NV-600A is a cost effective solution that delivers high-speed Internet access to end-users over existing copper wire infrastructure and is designed to meet the ISPs requirements with future proof Vectoring and ADSL2+ compatibility to cover end users in different loop range areas.

Vectoring Technology friendly Mode support

Vectoring is a transmission method that employs the coordination of line signals for reduction of crosstalk levels and improvement of performance. It is based on the concept of noise cancellation, much like noise-cancelling headphones. The ITU-T G.993.5 standard, "Self-FEXT cancellation (vectoring) for use with VDSL2 transceivers" (2010), also known as G.vector, describes vectoring for VDSL2. The scope of Recommendation ITU-T G.993.5 is specifically limited to the self-FEXT (far-end crosstalk) cancellation in the downstream and upstream directions. The far end crosstalk (FEXT) generated by a group of near-end transceivers and interfering with the far-end transceivers of that same group is cancelled. This cancellation takes place between VDSL2 transceivers, not necessarily of the same profile.

Easy Installation

The NV-600A may be installed on any level surface (e.g. a table or shelf). NV-600A supports plug-and-play installation and is fully compatible with all kinds of network protocols. Furthermore, user can watch the status of each individual port via the LED indicators.

Enhanced Management

For efficient management, via Web interface, the NV-600A can be programmed for advanced management functions such as QoS (Quality of Service)/DSCP, IEEE 802.1q Tag VLAN, SNMP v1/v2c/v3, IGMP v3 and enhanced security functions such as Packet filtering, DMZ, Mac Address based filtering, Parental Control, Application based filtering.

FEATURES

•  Supports ITU-T G.993.5 Vectoring
•  Supports ATM and PTM transmission mode auto detection( ADSL Annex A/B backward compatible)
•  Supports high bandwidth up to 100Mbps symmetric over line port
•  Supports 8a, 8b, 8c, 8d, 12a, 12b, 17a, 17b, and 30a band profile and 997, 998 band plan
•  Supports ATM-TC,ATM and AAL5 (ATM Flow Throughput / OAM Cell Filter and Forwarding / AAL5 SAR:PVC / ATM Traffic Class / ATM PVC Shaping / ATM PVC Scheduling)
•  Supports ATM Total Upstream Priority Queues
•  Supports uPnP/PPPoE/PPPoATM/IPv4/IPv6/NAT/NAPT
•  Supports static routing for IPv4 and IPv6 forwarding
•  Supports SNMP v1 / v2c / v3
•  Supports 802.1q VLAN tagging
•  Supports Firewall functions contains Packet filtering, DMZ, Mac Address ased filtering, Parental Control, Application based filtering
•  Supports DHCP Server/DHCP Relay/DHCP Client/DHCPv6 Client/DHCPv6 Server/DNS/DNS Proxy or Relay/DNSv6 Proxy or Relay/NTP Client/HTTP1.1 server
•  Supports Multicast IP table/IGMP v3 Proxy and Snooping
•  Supports Router & Switch(Bridged) mode
•  Supports IEEE 802.1p VLAN Priority and mapping to DSCP
•  Supports HTTP/HTTPS(SSL) web management
•  Supports remote management and monitor
•  Supports configuration backup and restore
•  Provides surge protection for Line port
•  Supports Router & Switch(Bridged) mode selection
•  Supports jumbo frame up to 1680 bytes
•  Supports 8 queue MFC/DSCP both type QoS
•  Supports Dual Firmware Image Backup
•  Supports Dying Gasp
•  Supports multi VPN with IPSec tunnels
•  Support ATM OAM F4 & F5
•

* Specifications are subject to change without prior notice.

Specifications

* Specifications are subject to change without prior notice.

APPLICATIONS

LAN Distance Extension

NV-600A is good for Ethernet distance extension over existing telephone wires. With just one pair of AWG-24 copper wire, you can easily connect the maximum data rate of 100Mbps and up to 3km distance support. It is easy-to-use which do not requires installation of additional wiring. Every modular phone jack in the building can become a port on the LAN.
