NC-200

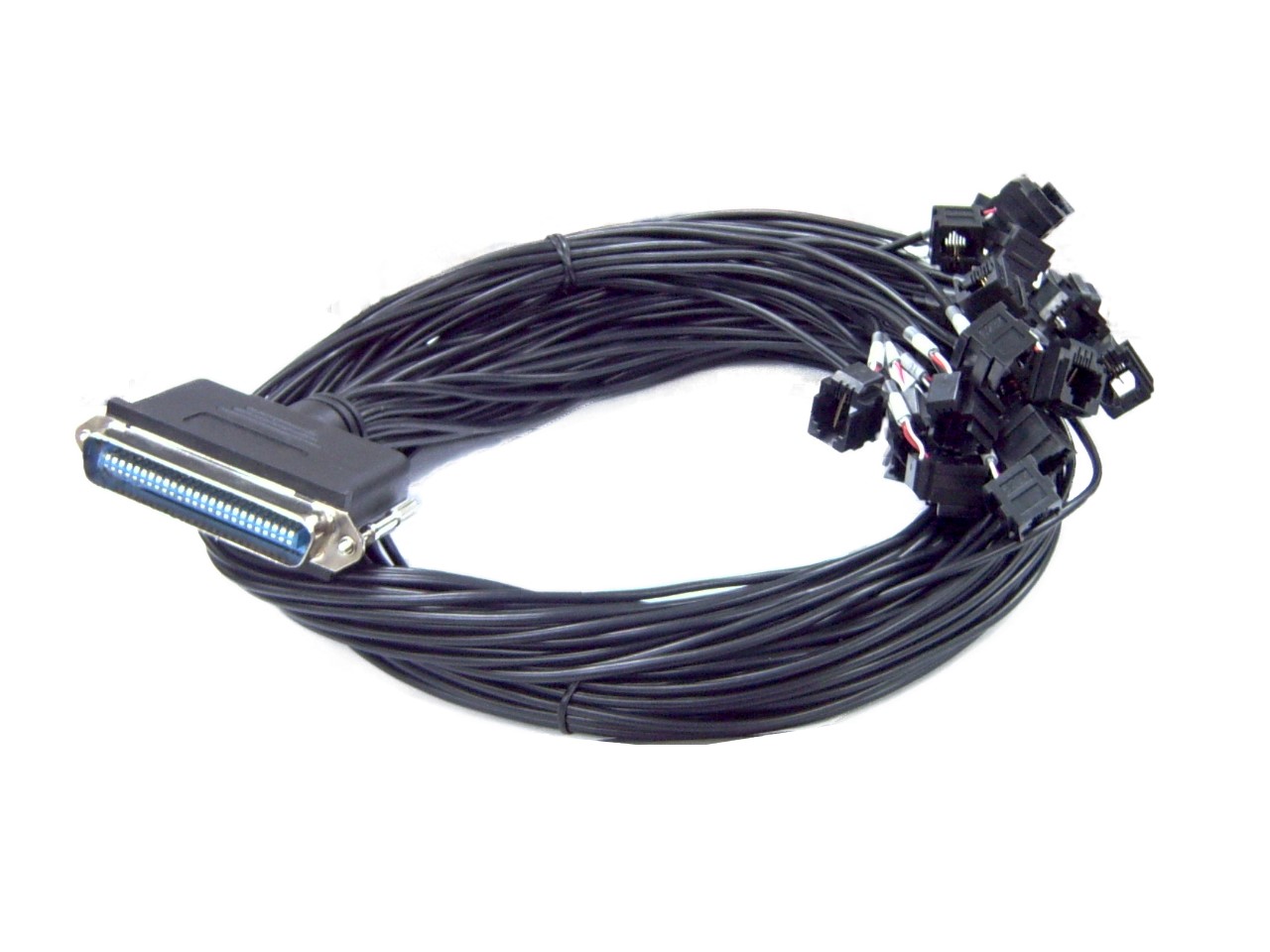

RJ21 24AWG Cable 25 Pair Telco Male / RJ-45 Female

Ordering Information
NC-200 RJ21 24AWG Cable 25 Pair Telco Male / RJ-45 Female



  • OVERVIEW
  • FEATURES
  • Drawing



Product OVERVIEW

The RJ21 Cable(NC-200) is in compliance with NV-2400H IP DSLAM. Please contact our sales Dep. if there is any request in further information.

RJ-21 Telco ports distribution

VDSL 50 Pin RJ-21 Cable Connector List. Cable Characteristic = 24 AWG twisted wire

VDSL Port No.
RJ-21 Cable No.
VDSL Port No.
RJ-21 Cable No.
1
24 & 49
13
12 & 37
2
23 & 48
14
11 & 36
3
22 & 47
15
10 & 35
4
21 & 46
16
9 & 34
5
20 & 45
17
8 & 33
6
19 & 44
18
7 & 32
7
18 & 43
19
6 & 31
8
17 & 42
20
5 & 30
9
16 & 41
21
4 & 29
10
15 & 40
22
3 & 28
11
14 & 39
23
2 & 27
12
13 & 38
24
1 & 26
Note: Do not use RJ-21 Cable Pin 25 and Pin 50





FEATURES

  •  UL2725 24AWG*2C+AE OD:3.0mm / color:black
  •  Centronic sulier type (male-50P) / Riveted: #4-40 UNC
  •  Open nuts on rear shell DIM / insulator color: blue
  •  Leaded Jack 641 8p / color: gray
  •  TIE-B150 / BE02 (cable tie of every 500mm)
  •  Thumb screw F4*37 mm #4-40 UNC Nickel
  •  Tube clear Ø3.5*15±2mm
  •   Label color 1~8(Blue), 9-16(Brown), 17~24(White)
  •  Dimensions: 1500mm(4.9ft)
  •

* Specifications are subject to change without prior notice.



drawing
