NHG-230PSE
1.6Gbps G.hn phone wire over dual Giga LAN with 802.3bt POE adapter
| Ordering Information | ||
| NHG-230PSE | 1.6Gbps G.hn phone wire over dual Giga LAN with 802.3bt POE adapter | |
- OVERVIEW
- FEATURES
- SPECIFICATIONS
- APPLICATIONS
- DOWNLOAD
Product OVERVIEW
The NHG-230PSE is a high-performance G.hn Wave-2 subscriber adapter engineered to deliver throughput exceeding 1.6 Gbps over existing copper infrastructure. Designed for seamless coexistence with ADSL, VDSL, and G.fast services, it allows for high-speed upgrades without disrupting legacy systems. Equipped with dual Gigabit LAN ports and IEEE 802.3bt PoE++ support, it provides a robust dual 90W power budget for high-draw devices. This solution is optimized for FTTX/MDU/MTU network access infrastructure, connecting to a G.now IP DSLAM to enable rapid deployment of UHD 4K Video streaming without the need for new cabling. The integrated splitter and dual RJ-11 ports ensure simultaneous high-speed data and analog voice service on a single pair.
FEATURES
- Supports dual 10/100/1000 Base-T Gigabit LAN ports with built-in IEEE 802.3bt PSE, providing up to 90W for high-draw PD devices over phone wire
- Auto-detects connected PD devices with support for IEEE 802.3af/at/bt (Type 3 & 4) and End-span/Midspan modes for maximum device compatibility
- Supports MTU (Jumbo frame) up to 2K bytes
- Leverages SISO channel technology to achieve high-speed throughput of up to 1.6 Gbps
- Supports line port distances of up to 500 meters over single-pair phone wire
- Built-in splitter for the phone port to allow simultaneous voice and high-speed data
- Advanced FEC (Forward Error Correction) mechanism
- Advanced NDIM technology for interference mitigation in MDUs with a high density of users
- Supports IGMP (IPv4) and MLD (IPv6) Snooping for optimized IPTV and video traffic management
- Built-in LED indicators for link quality verification and status monitoring
- Built-in surge protector for the line port to ensure long-term reliability
- Supports AES-128 encryption with Specifications individual key
* Specifications are subject to change without prior notice.
Specifications
| Standard Conformance | ||
| Standard: | IEEE802.3 / IEEE802.3u / IEEE802.3ab / IEEE802.3af / IEEE802.3at / IEEE802.3bt standard ITU-T G.9960/9961/9962/9964 standard |
|
| Regulatory Compliance: | FCC CE |
|
| Hardware Specifications | ||

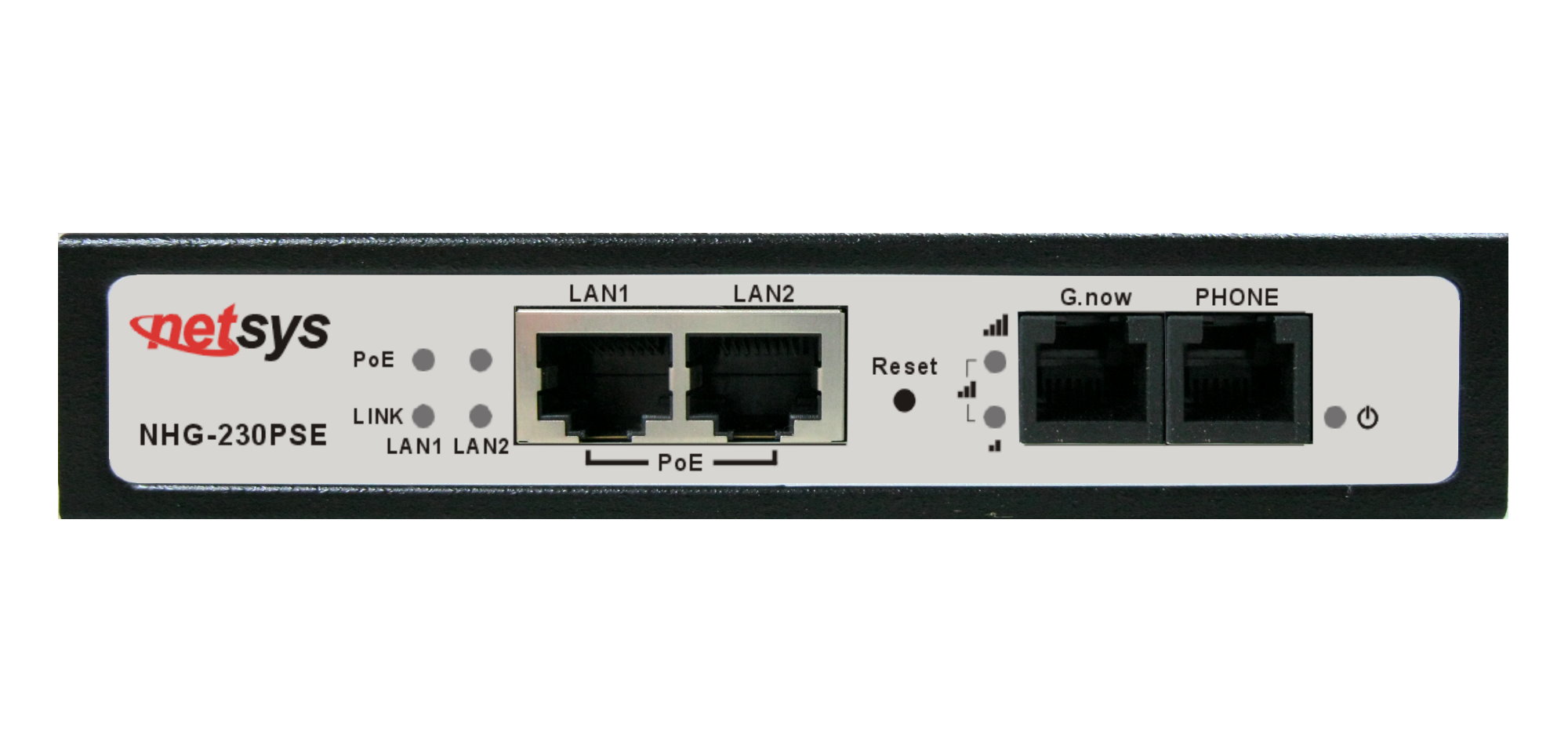

| Physical Interface: | 2 x RJ-45 connectors 1 x RJ-11 connector for G.now line port 1 x RJ-11 connector for splitter port |
|
| Max. Data Rate: | 1.6Gbps | |
| Max. distance | 500m (1640ft) | |
| LED indications: | LAN: Act / Link, POE Link, Power Link Quality: High/Middle/Low |
|
| G.hn Modulation Working frequency: | OFDM 3.516Mhz ~ 200Mhz | |
| Power injector: | up to 90W / per LAN port | |

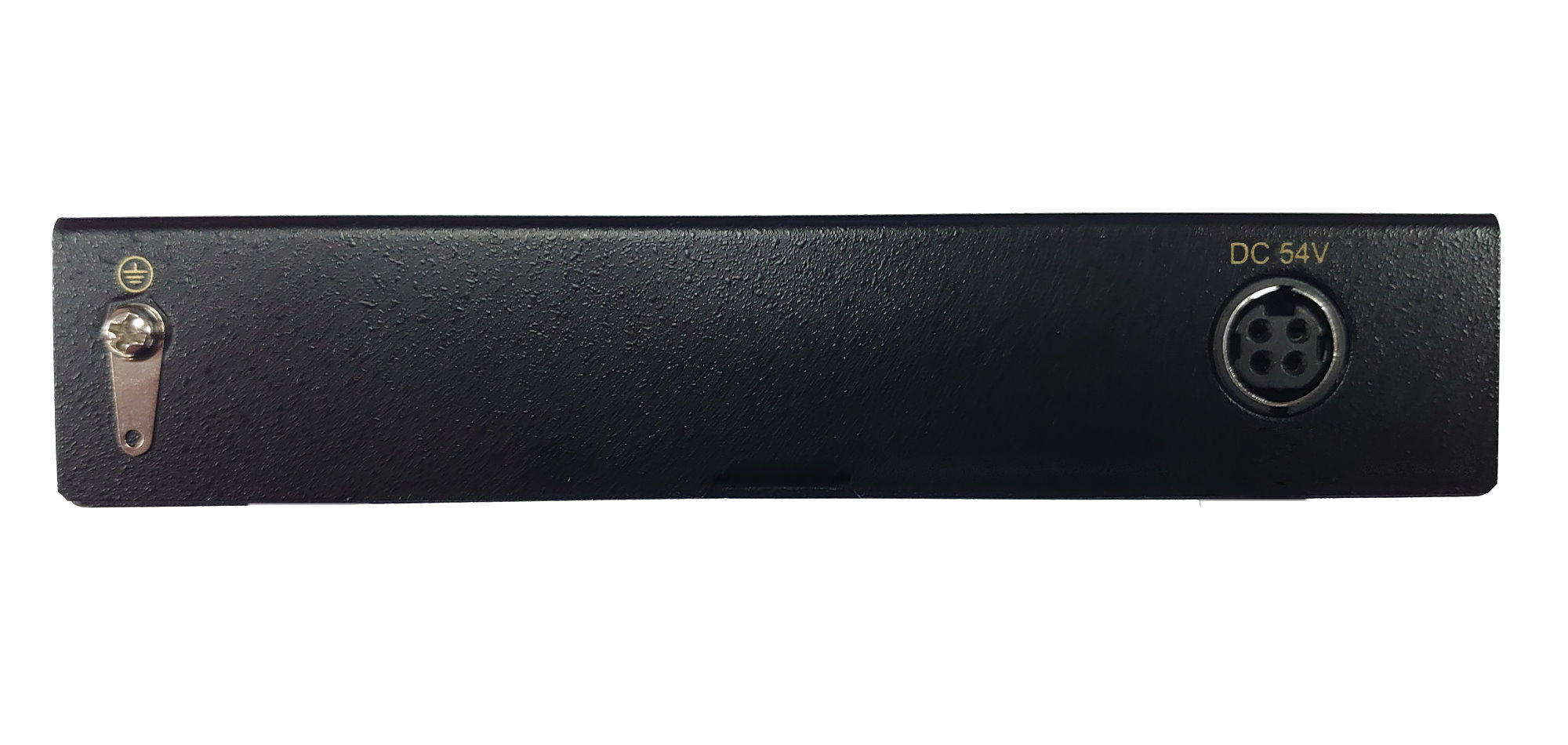

| Power Requirement: | 100-240Vac to 54Vdc switching power adapter | |
| Typical Power Consumption: | Typical 6 watts (without Power injector loading) | |
| Operating Temperature: | 0°C~ 50°C (32°F ~ 122°F) Fanless, free air cooling | |
| Storage Temperature: | -20°C ~ 70°C (-4°F ~ 158°F) | |
| Humidity: | 10 to 90% (non-condensing) | |
| Weight: | 399.5g | |
| Dimensions: | 137mm x 100mm x 27 mm (5.39" x 3.94" x 1.06") (L x W x H) | |
* Specifications are subject to change without prior notice.

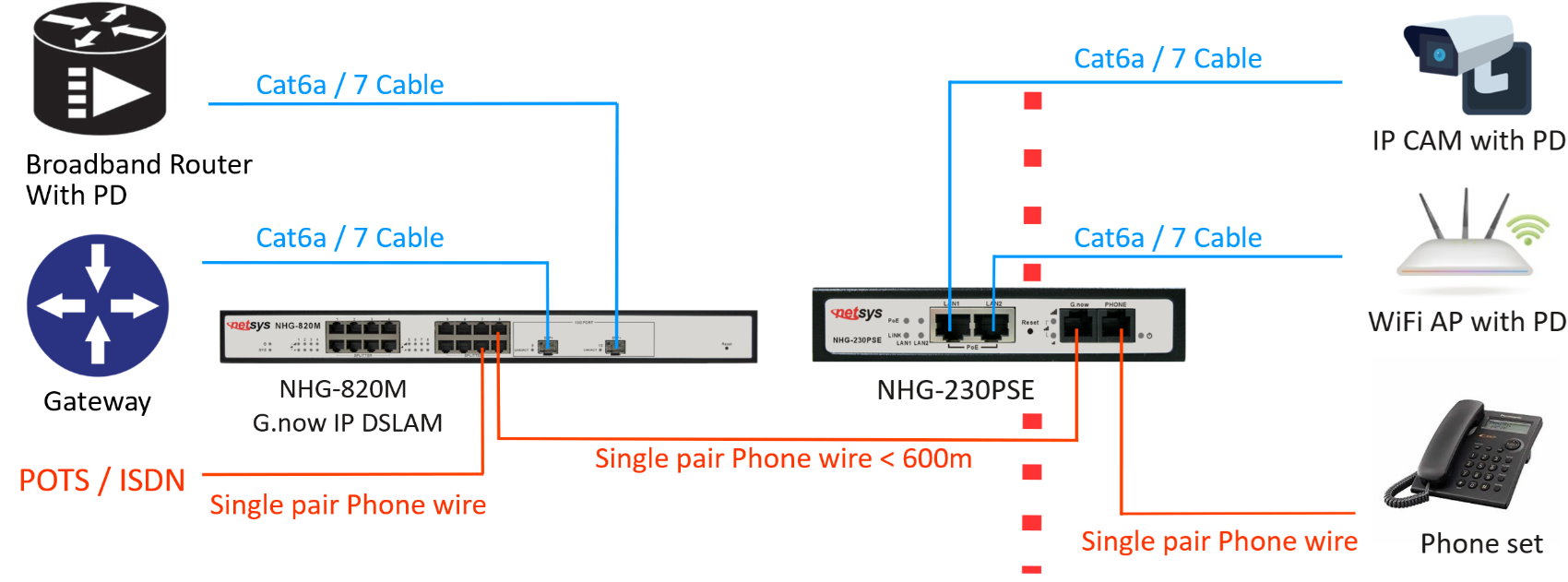

APPLICATIONS
