Accessories - Splitter

Ordering Information
NSP-001 VDSL Annex A Micro Filter
NSP-002 VDSL Universal Splitter



  • OVERVIEW
  • FEATURES
  • SPECIFICATIONS
  • Drawing
  • DOWNLOAD



Product OVERVIEW

The Netsys NSP-001 is a POTS splitter (or Micro Filter) that has been specifically designed to implement the functionality of low pass filter in VDSL over POTS application. It is compliant to ITU-T G.993.2 Annex E, ANSI TIE1.4 G992.2, and ETS300 001 standards.

The Netsys NSP-002 is a splitter module that has been specifically designed to implement the functionality of low pass filter in VDSL over ISDN application.NSP-002 had also included protection circuit to provide additional protection against line overstress which could damage the splitter itself. It is compliant to ETSI TS 101 952-2-3, ETSI TS 101 952-1-4 standards.



FEATURES

  •  High quality, low-pass filter with optimum performance
  •  Compact package, includes connectors for ease of installation
  •  100 mA DC Loop Current Capacity
  •  Design for VDSL over POTS Application (only NSP-001)
  •  Comply to K21 (only NSP-002)
  •

* Specifications are subject to change without prior notice.



Specifications



 Hardware Specifications
NSP-001
Conditions
Values
Splitter bandwidth
DC-4.0KHz
VDSL band
30KHz ~30MHz
Line Impedance ZL
300Hz to 3.4 KHz
600 ohms



 Hardware Specifications
NSP-002
Conditions
Values
Splitter bandwidth
DC-94KHz
Nominal impedance ISDN
ZISDN
150 ohms
Nominal impedance LINE
ZLINE
135 ohms
Modem impedance
100 ohms
POTS impedance
270 ohms , 600 ohms



* Specifications are subject to change without prior notice.



drawing

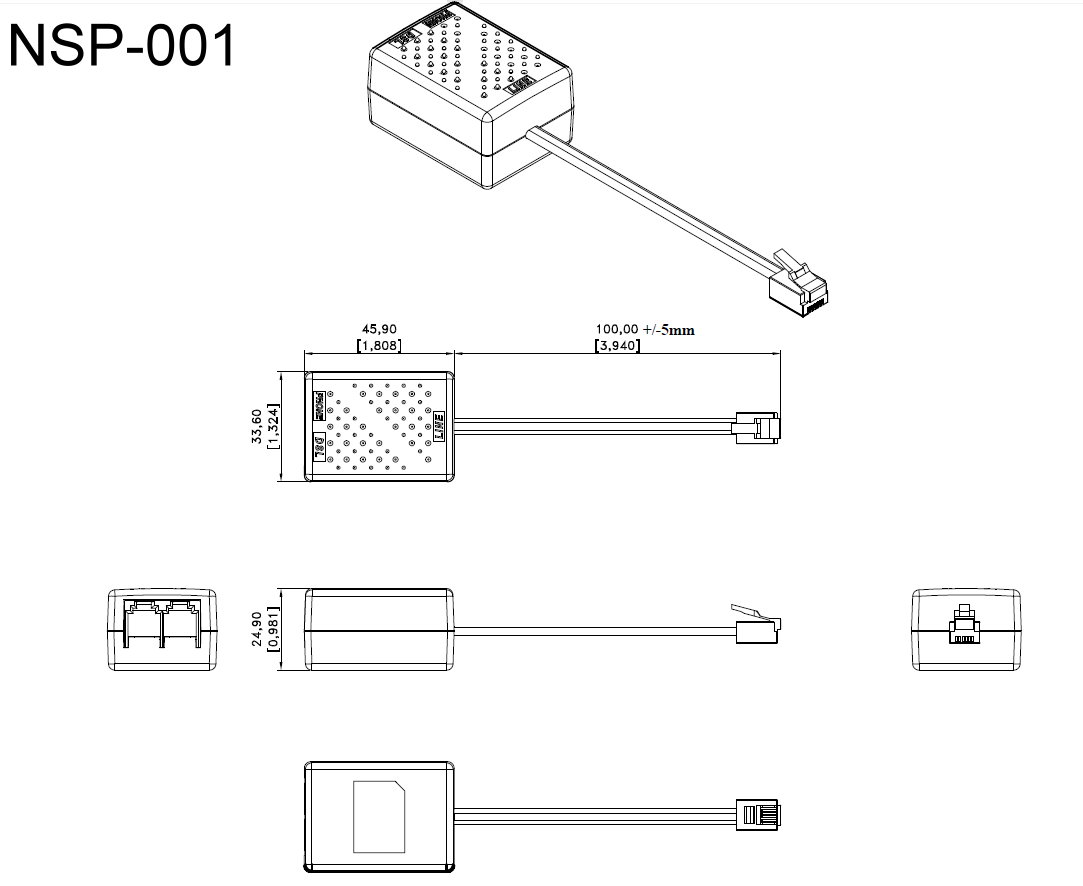

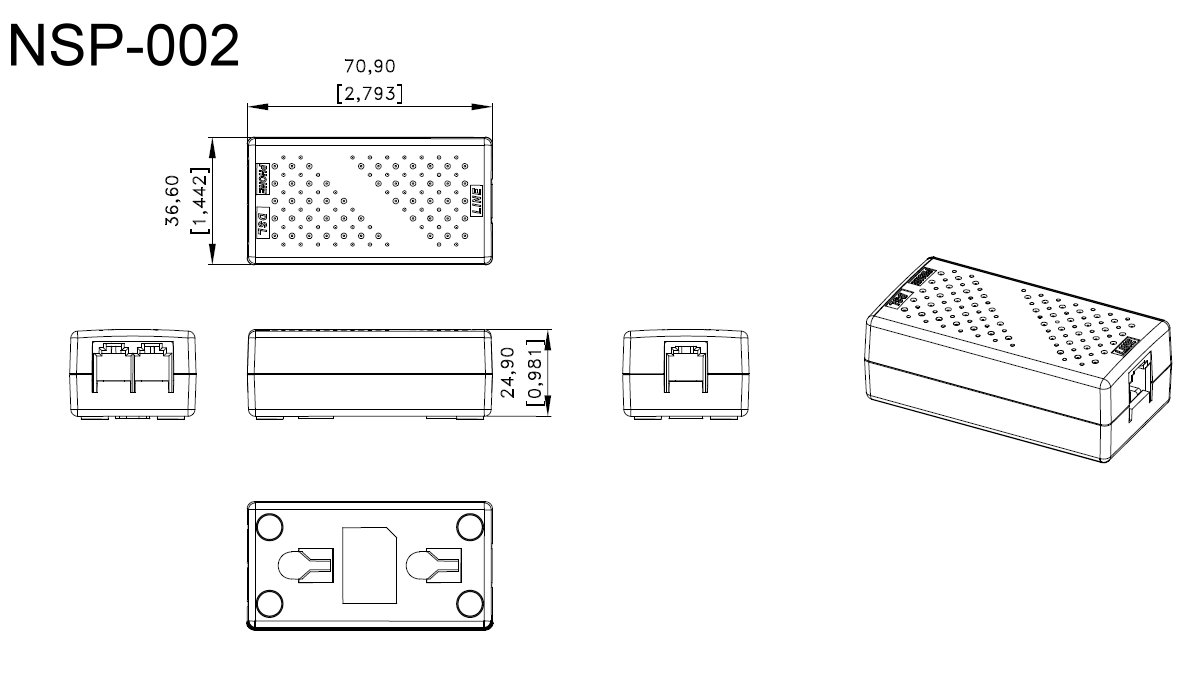

Dimension and Mechanical Drawing (Unit: mm)







DOWNLOAD

Release Date File Version Download
 June, 2013  Datasheet (NSP-001)  A2
 Jun, 2009  Datasheet (NSP-002)  A3
