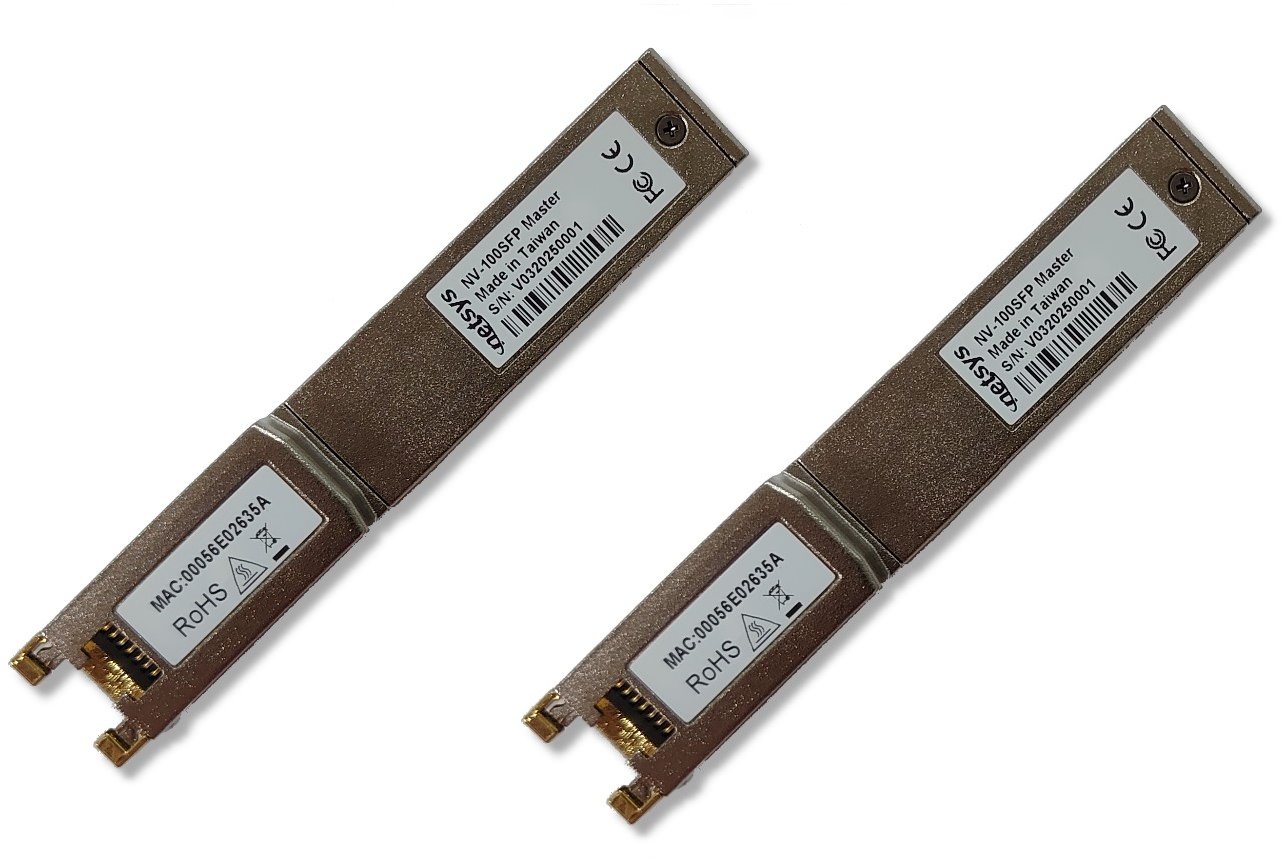

NV-100SFP-M

Long Reach Ethernet over VDSL2 SFP
Ordering Information
NV-100SFP-M LREoVD2 SFP Module Master



  • OVERVIEW
  • FEATURES
  • SPECIFICATIONS
  • APPLICATIONS
  • DOWNLOAD



Product OVERVIEW

The Netsys NV-100SFP-M LREoVD2 SFP is an MSA compliant Small-Form Factor Pluggable module that enables traditional Ethernet switch, media converter and other network appliance to connect beyond typical Ethernet coverage (100 meters). Leveraging VDSL2 technology, this SFP module can easily be applied in any environment with existing 2-wire cable, such as phone line, to avoid the cost of rewiring. It can dramatically extend Ethernet service on UTP wire with distance up to 3000 meters.



FEATURES

  •  Industry Standard Small Form-Factor Pluggable(MSA compliant)
  •  Provide 100/100 Mbps up to 400m over CAT 5e
  •  Supports long reach up to 3KM
  •  Supports Auto speed and plug & play
  •  Industrial rated for -20 °C to 70 °C operation
  •

* Specifications are subject to change without prior notice.



Specifications

Standard Conformance
 Regulatory Compliance:  FCC
 CE
 RoHS compliance



 Hardware Specifications
 Physical Interface:  RJ-45/RJ-11 Port (LINE Port)
 1000X/SERDES connect to SFP switch
 LED indication:  LED1 (CO/CPE indicator)
 LED2 (Link active Status indicator)
 Power Consumption:  2.4Watt
 ESD Standards:  Contact:+/-4KV Air:+/-8KV(EN61000-4-2)
 Operating Temperature:  0°C~ 50°C (32°F ~ 122°F)
 Storage Temperature:  -20°C ~ 70°C (-4°F ~ 158°F)
 Humidity:  10 to 90% (non-condensing)
 Dimensions:  79.2 x 13.7 x 17 mm



* Specifications are subject to change without prior notice.



APPLICATIONS

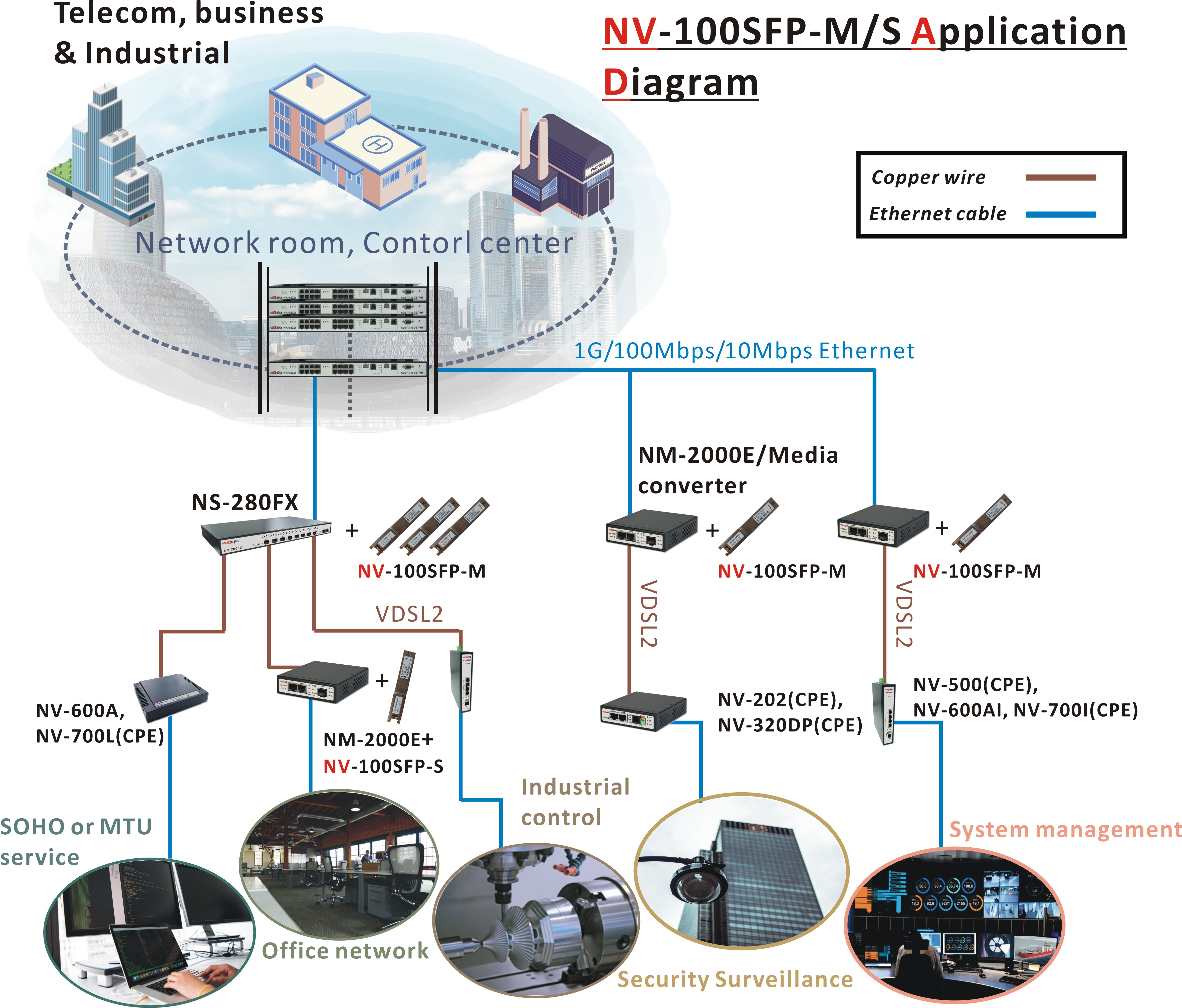

NV-100SFP Application diagram







DOWNLOAD

Release Date File Version Download
 Oct, 2020  Datasheet  N/A
 Mar, 2021  Quick start guide  N/A
